Pharmaceutical QC Instruments

Dissolution Tester

MODEL: DR-8M

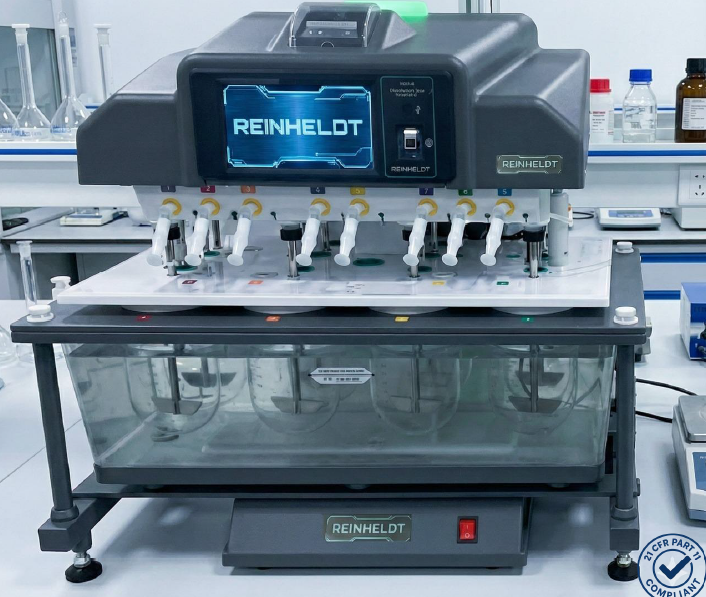

The Reinheldt DR-8M Next Generation Manual Syringe Dissolution System is a premium German-engineered 8-station dissolution testing platform designed for pharmaceutical quality control, method development, and research laboratories. The system combines the simplicity of manual sampling with the precision of a syringe manifold, delivering highly accurate and reproducible dissolution testing. Its unique programmable variable dilution capability allows different aliquot volumes at each sampling interval, making it an ideal solution for complex dissolution profiles and advanced analytical methods. The DR-8M fully complies with USP, IP, Ph. Eur., and JP pharmacopeial requirements while offering secure data management and 21 CFR Part 11-ready features for regulated laboratories.

Specifications

Model	Reinheldt DR-8M Next Generation
Manufacturer	Reinheldt GmbH, Germany
System Type	Manual Syringe Dissolution System
Stations	8
Sampling Method	Manual syringe manifold
Unique Feature	Programmable variable dilution with different aliquot volumes for each sampling interval
Compliance	USP, IP, Ph. Eur., and JP Pharmacopeia
Display	7-inch TFT color touchscreen
User Capacity	Up to 250 users with multi-level password protection
Data Storage	Up to 1000 product methods and 50,000 test reports
Sampling Program	Up to 24 programmable sampling intervals
Temperature Control	Independent digital controller with vibration-free circulation pump
Water Bath	Clear molded acrylic bath with bottom drainage
Lift Mechanism	Vibration-free motorized lift
Vessel Alignment	High-precision vessel centering with snap-fit shaft locking
Automatic Stirrer Height	USP Apparatus 1, 2, 5 & 6
Connectivity	LAN, FTP backup, PDF report export
Data Integrity	Electronic Logbook, Audit Trail, Role-based User Access
Regulatory Compliance	21 CFR Part 11 ready
Power Protection	Auto-resume after power interruption
