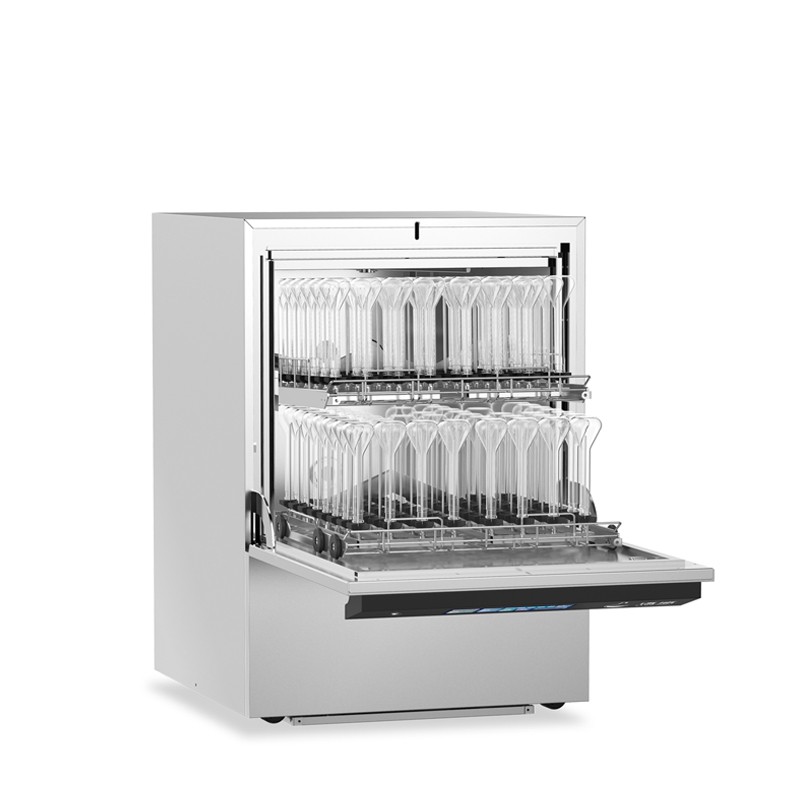

Laboratory Glassware Washer

Glassware Washer and Dryer

MODEL: LW180Plus

1. Control System The intelligent control system features an 8.8-inch touchscreen with automatic screen hibernation and manual wake-up during operation. It provides real-time monitoring of water inlet flow, cleaning program, cleaning stage, remaining time, pipeline pressure, and other operating parameters. The system automatically records the operating status of all major electrical components for enhanced process monitoring. 2. Circulation System The high-performance circulation pump utilizes soft-start and variable frequency control technology, allowing adjustable pump speed to optimize circulation flow and cleaning efficiency for different laboratory applications. 3. Piping System Built-in pure water booster pump for reliable water supply. Rear water supply design ensures efficient water distribution to the cleaning baskets. Modular FL-EXCH cleaning basket system with independently replaceable 1/2 basket modules for maximum flexibility. Dual-channel detergent dosing system automatically dispenses alkaline and acidic cleaning agents according to the selected cleaning program. 4. Safety Protection System Electronic safety door lock (EULA technology) with automatic locking function prevents the door from opening while the chamber is at high temperature, ensuring operator safety. Integrated protection features include: Water heater over-temperature protection Circulation pump overheat protection Real-time water leakage monitoring Automatic program recovery after water supply interruption Power failure memory function for uninterrupted process continuity 5. Multi-Layer Filtration System The multi-stage filtration system effectively removes particulate contaminants from the wash water, protecting the circulation pump and spray nozzles while maintaining consistent cleaning performance and extending equipment service life.

Specifications

Model	LW180 Plus
Voltage	200–240 V
Frequency	50/60 Hz
Total Power	5 kW
Cleaning Chamber Volume	190 L
Cleaning Basket Capacity	2 Layers
Pump Flow Rate	0–400 L/min
Drying System	Injection Drying
Screen Size	8.8-inch Touch Screen
Standard Programs	30
User-Defined Programs	120
Three-Level Operator Access	Yes
Black Box System	Yes
Pipeline Pressure Monitoring	Yes
Intelligent Switch Door	Yes
Printer Interface	Yes
SD Card Storage System	Yes
Cleaning Basket Identification	Not Available
Fingerprint Identification System	Not Available
External Dimensions	(L × W × H) 640 × 746 × 820 mm
